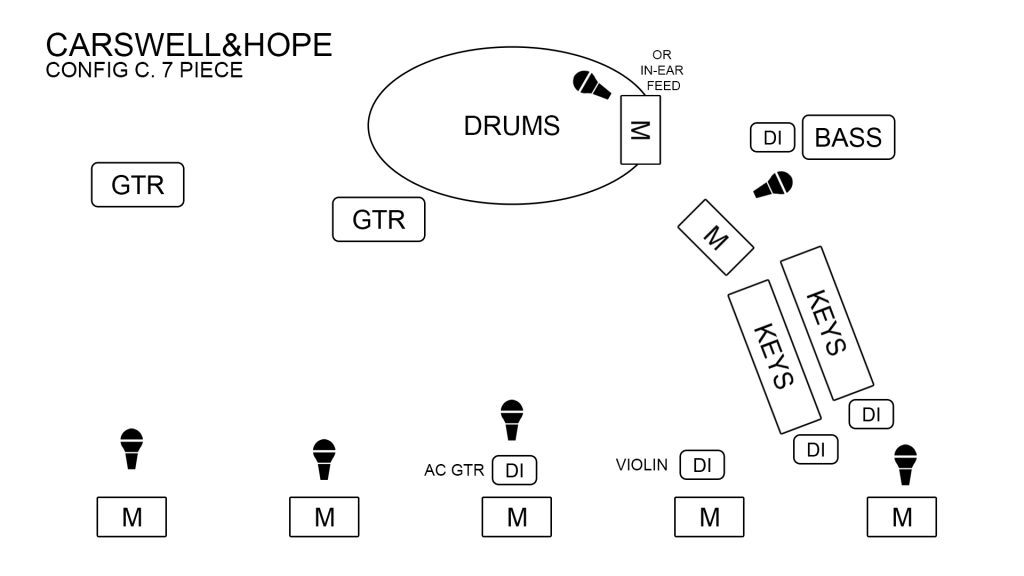

Stage Plot

(Click here for PDF version)

Channel List & Back Line

(click here for PDF version)

Channel List

1. Kick drum (D112 or similar)
2. Snare drum (SM57 or similar)
3. Rack tom
4. Floor tom
5. Overhead1
6. Overhead2
7. Bass gtr (direct out from amp)
8. Electric Guitar 1 (amp mic)
9. Electric Guitar 2 (amp mic)
10. Acoustic Gtr (D.I.)
11. Keyboard (D.I.)
12. Vocal mic (Nick/lead vox) – SM58 or similar
13. Vocal mic (bass)
14. Vocal mic (guitar)
15. Vocal mic (drums)

Backline List

1. Fender Super Reverb (or similar) must have reverb/vibrato+pedal switch
2. Marshall JVM Combo guitar amp (or similar)
3. Ampeg Keyboard amp / Peavey KB5 or similar
4. Roland RD-700NX / Yamaha CP33 or similar stage piano
5. Ampeg BA 115 Bass Amp (or similar)
6. 4 x D.I. boxes
7. Drumkit:
   22″ Bass drumSnare
   Mounted or suspended Rack tom (12″)
   Floor Tom (16″)
   DW7000 Bass pedal (or equiv chain drive),
   Hi hat stand
   3 x cymbal boom stands
   Drum seat
